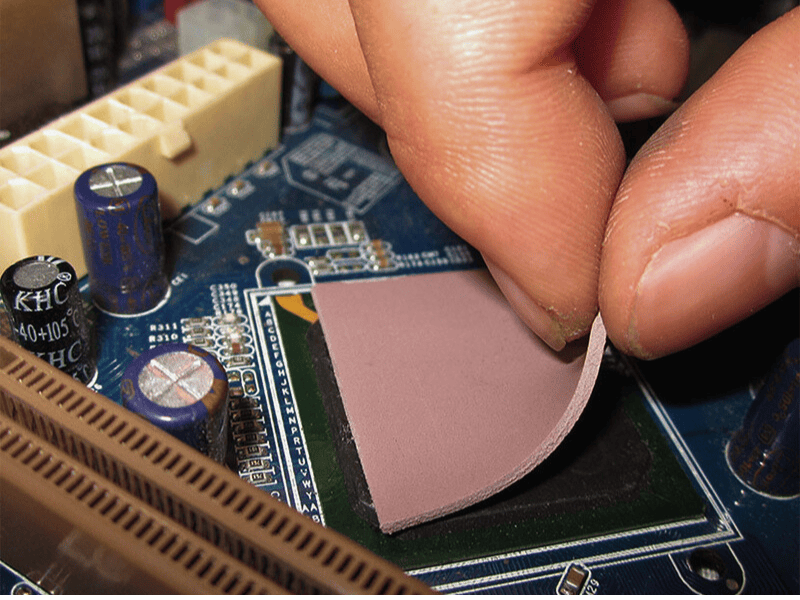

“Installation became much easier and cooling performance improved immediately.”
David MElectronics Manufacturer
Custom High-Performance Thermal Pads, Engineered to Your Specs
- Pioneering Polymer Modification Technology in Thermal Management
- Certified Quality: IATF 16949 & ISO 9001 Certified.
- Compliance Ready: Fully UL, RoHS, and REACH Compliant.

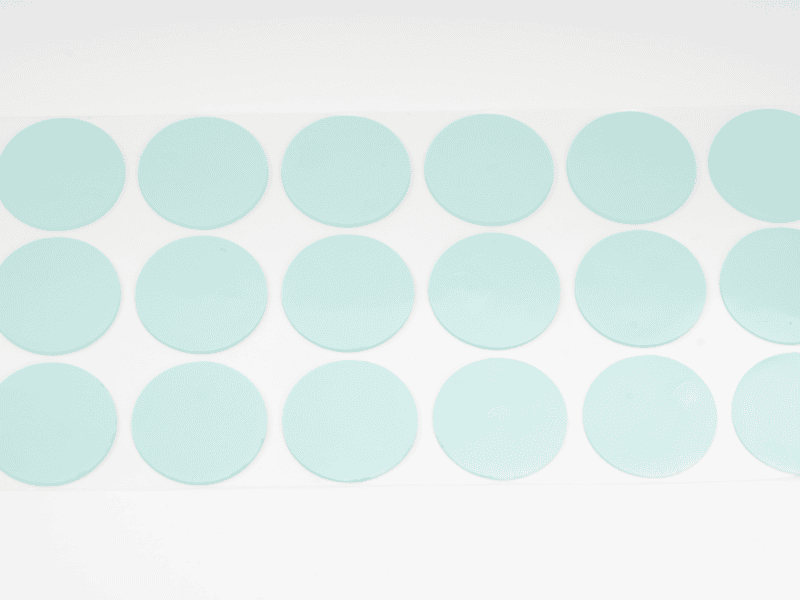

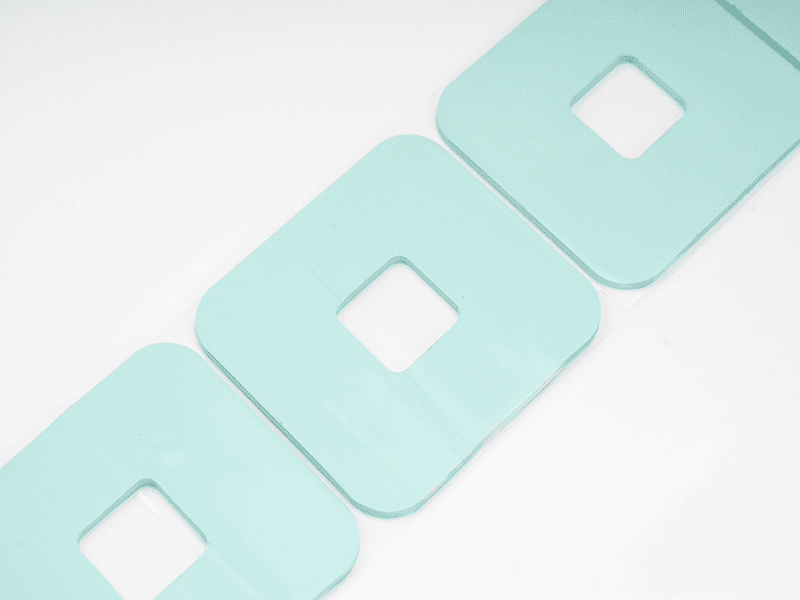

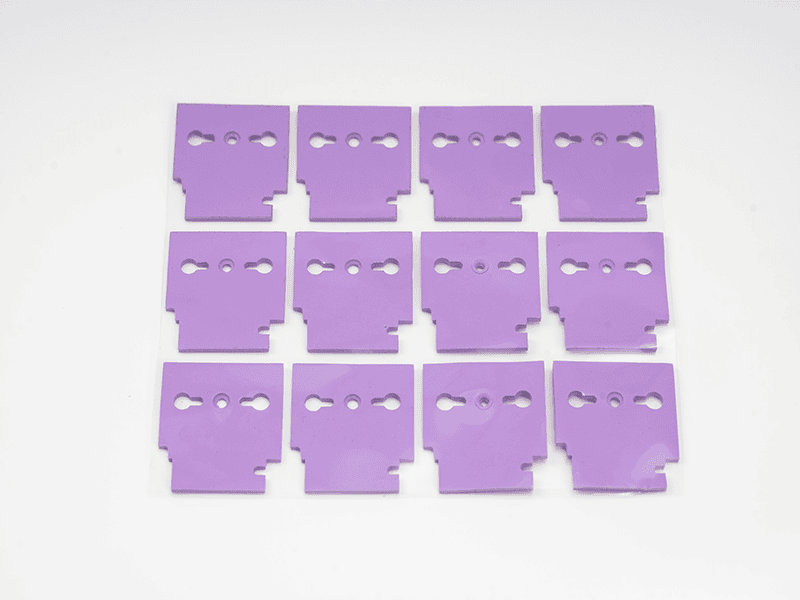

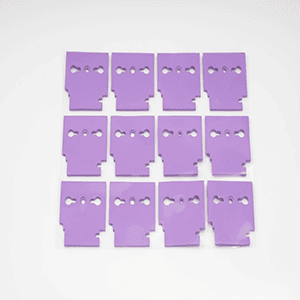

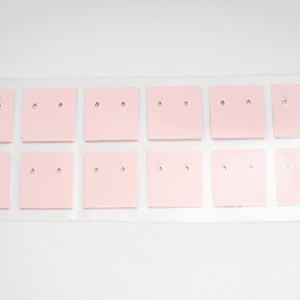

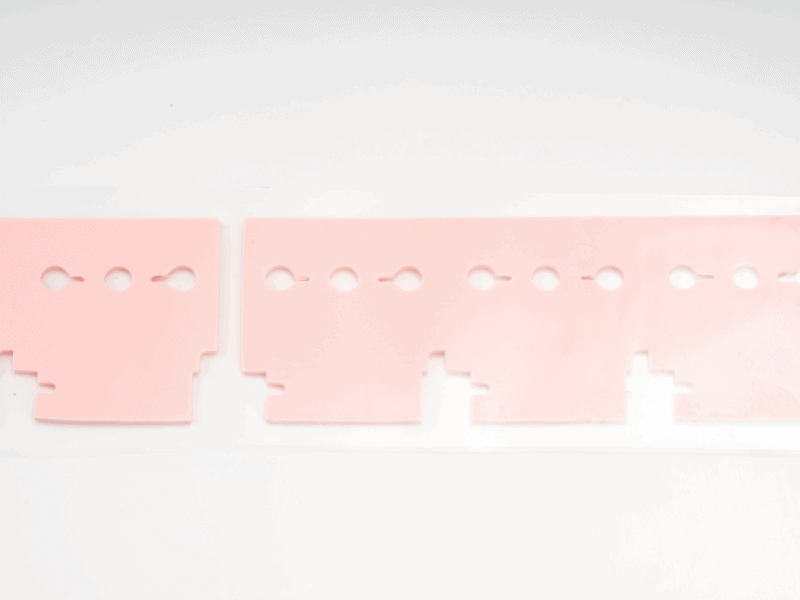

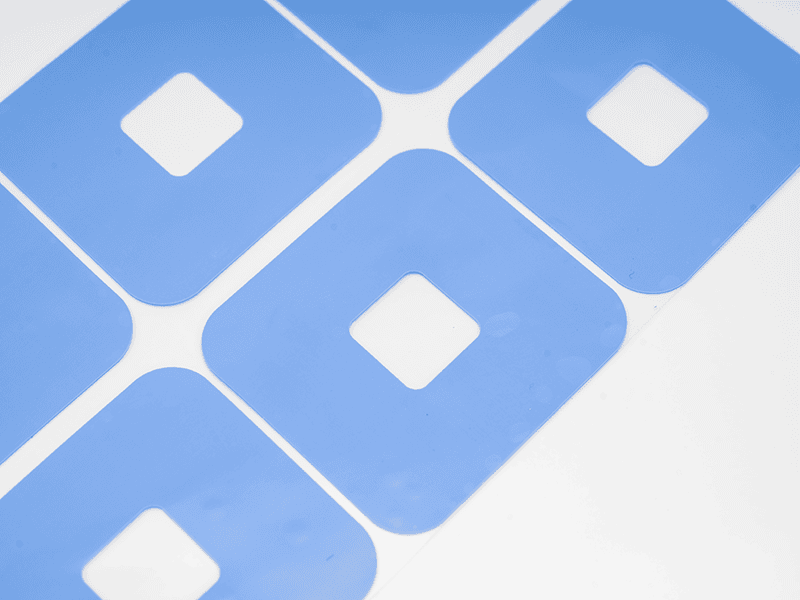

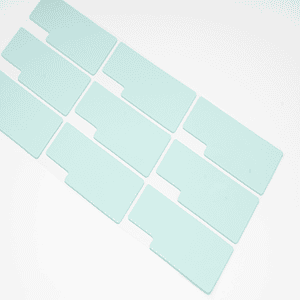

- Rapid Prototyping: Custom Die-Cutting & Thicknesses available.
High-Performance TIMs: 1.2–30 W/m·K
Select your required thermal conductivity. Custom die-cut and ready to ship.
AI Clusters & High-TDP Cooling
30.0 W/m·K (ASTM D5470) conductivity for 1000W+ chips. Shore 00 15 matrix ensures 98% interface wetting. Eliminates hotspots without risking PCB warpage under low pressure.
800V EV & SiC Power Modules
IATF 16949 certified. >10.0 kV/mm dielectric strength. Reliable -60°C to 200°C insulation for high-voltage isolation in automotive inverters and OBCs.
5G Base Stations & Outdoor Gear
Zero siloxane migration prevents oil bleed and pump-out. UL 94 V-0 fire safety. Ensures 10+ years of stable heat flux in uncooled 5G AAU/RRU environments.
ADAS Sensors & Precision Optics
ASTM E595 non-silicone TIMs. Low outgassing (TML < 1.0%) prevents lens fogging and sensor contamination. 10.0 W/m·K for LiDAR and medical imaging reliability.
Ultra-Thin Packaging (0.3mm)

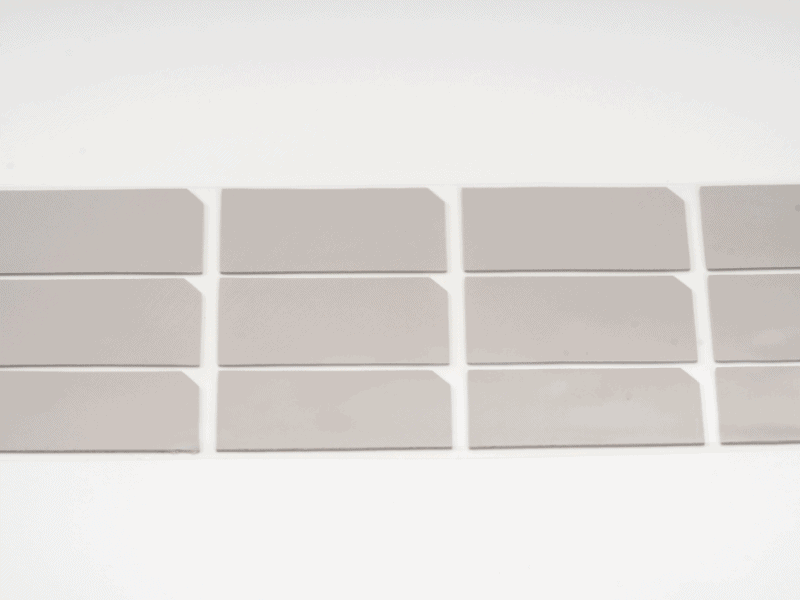

Profiles from 0.3mm to fill microscopic air gaps in compact high-density designs. High molecular wet-out. Clean, stable alternative to grease in smartphones and wearables.
Industrial Power & BESS
5.0mm to 18mm gap filling. 10¹⁴ Ohm-cm volume resistivity. High-deflection elastomers absorb thermal expansion and mechanical shock in heavy-duty enclosures.
3 Key Advantages of Modification Technology
With wet modification technology, we enhance the properties of thermal pads tailored to your specific application scenarios.
Mastering Polymer Chain Modification
By restructuring the polymer matrix at the molecular level, we create highly efficient thermal superhighways that eradicate bottlenecks under peak TDP loads.
Optimized Thermal Pathways
Maximum Filler Density
Consistent Heat Dissipation

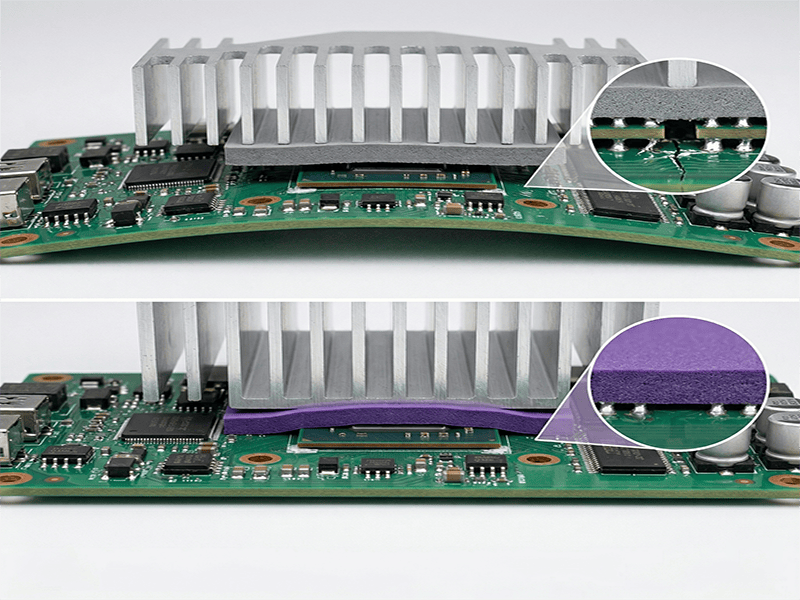

Ultra-Soft Elastomer (Shore 00 10-20)
Engineered for maximum conformability. Achieve superior surface wetting and completely eliminate the risk of PCB warpage or solder joint cracking during assembly.
Zero Assembly Stress
Prevent PCB Warpage
Seamless Micro-Void Filling

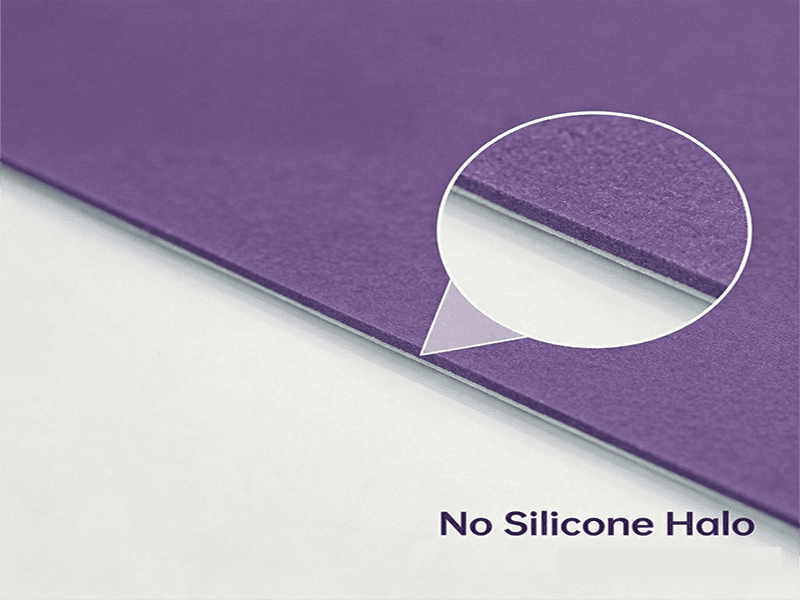

Anti-Migration Stable Formula
Our cross-linked polymer modification securely locks in silicone oil, delivering over a decade of reliability and eliminating short-circuit risks caused by siloxane outgassing.
Zero Siloxane Bleed-Out
Prevent Contact Failure
Extended Hardware Lifespan
JiuJu Pro-Series vs. Commodity Gap Fillers
| Properties | Unit | JiuJu Pro-Series | Standard Gap Pad | Test Method |
|---|---|---|---|---|
| Thermal Conductivity | W/m·K | 1.2 - 30.0 | 1.2 - 10.0 | ASTM D5470 |
| Hardness | Shore 00 | 10 - 35 (Ultra Soft) | 50 - 80 | ASTM D2240 |
| Thickness Range | mm | 0.25 - 5.0 | 0.5 - 3.0 | ASTM D374 |
| Dielectric Strength | kV/mm | > 10.0 | > 5.0 | ASTM D149 |
| Volume Resistivity | Ohm-cm | 10¹⁴ | 10¹¹ | ASTM D257 |
| Flammability | - | V-0 | V-1 / HB | UL 94 |
Vertical Industry Solutions
Strategically aligned with global automotive and electronics manufacturing standards.

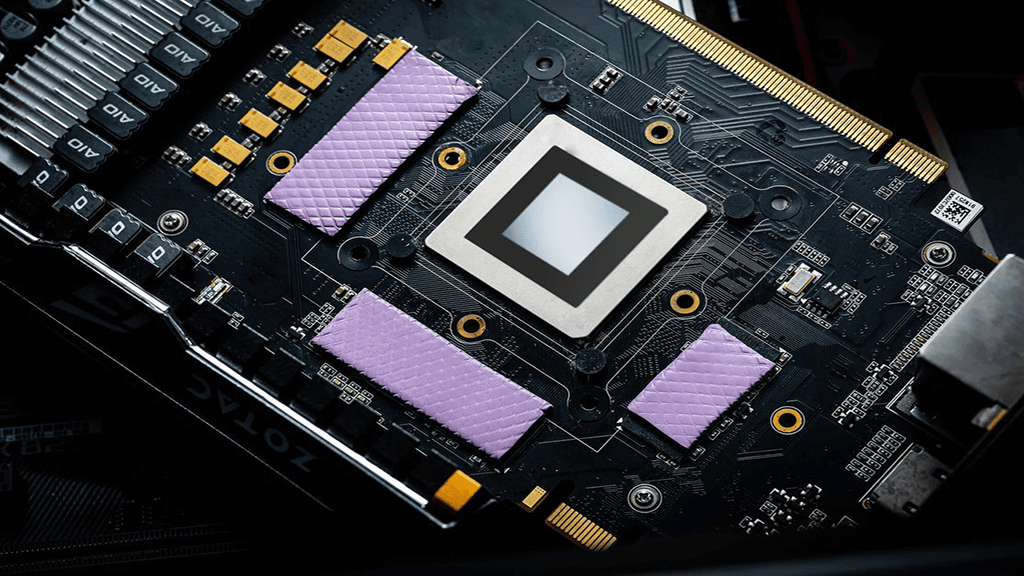

Next-Generation AI Server GPUs
Delivered an ultra-low thermal resistance solution for processors exceeding 800W TDP, offering seamless compatibility with advanced liquid cooling architectures.
800W+ TDP Support
Ultra-Low Resistance
Liquid Cooling Ready
New Energy Vehicle (EV) OBC & DC/DC
Empowered a global Tier-1 supplier to overcome severe vibration and electrical insulation challenges in 800V high-voltage platforms, effectively reducing interfacial thermal resistance by 30%
800V High Voltage
Reliable Electrical Insulation
30% Lower Resistance

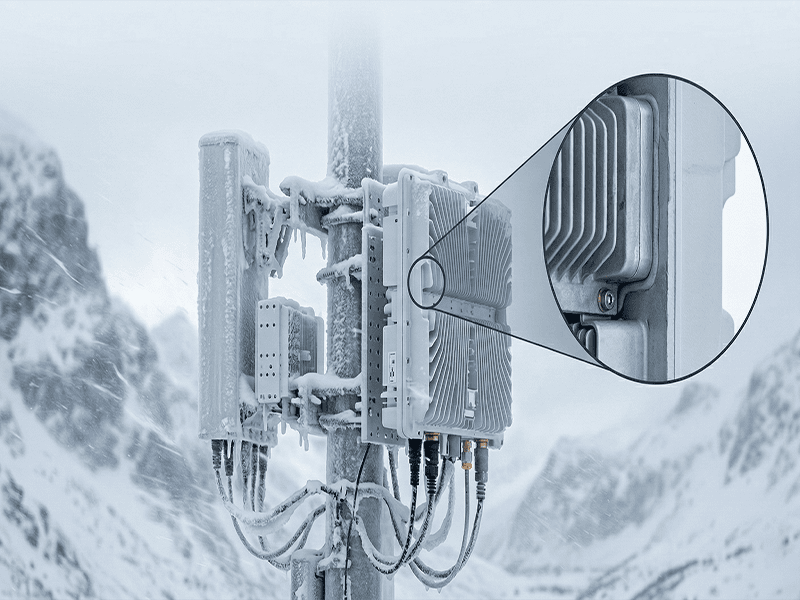

5G Outdoor Active Antenna Units (AAU)
Met extreme weatherability demands by achieving zero siloxane migration, ensuring the long-term, stable operation of telecom base stations in harsh environments.
Extreme Weather Resistance
Zero Siloxane Migration
Long-Term Stability
Compliance-Ready Authority
-
IATF 16949: Stringent automotive quality management system certification.
-
ISO 9001 & 14001: Excellence in manufacturing processes and environmental stewardship.
-
RoHS & REACH: 100% eco-compliance, guaranteeing seamless global market access for your end products.
-
UL Verified: Industry-recognized flammability rating and safety certification.

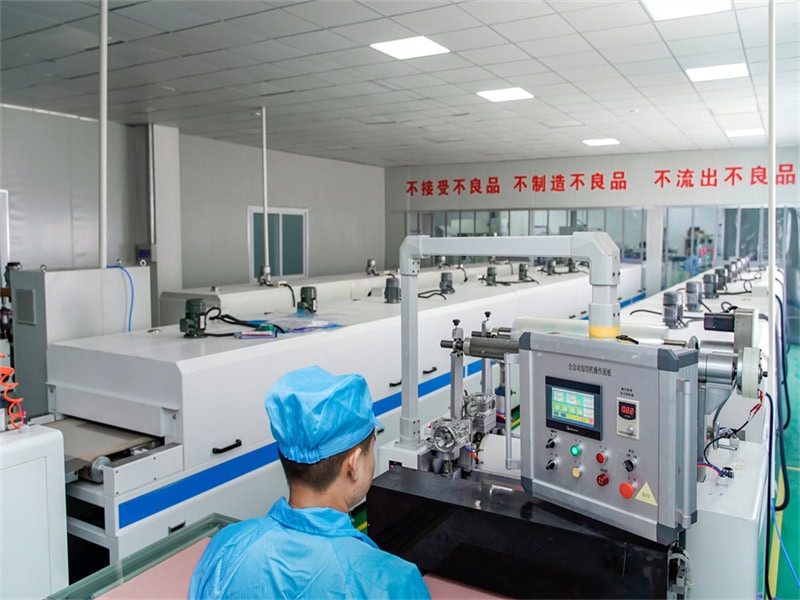

Strategic Sourcing & Capacity
As a National High-Tech Enterprise, we do more than just manufacture thermal pads—we deliver comprehensive engineering and JIT (Just-In-Time) manufacturing support.
- 24-Hour Engineering Response: Rapid technical review to resolve your complex design challenges.
- 48-Hour Rapid Prototyping: Expedited sample dispatch to support your lab testing and performance validation.
- Redundant Capacity Planning: Ensuring stable, uninterrupted supply for high-volume orders to eliminate production downtime risks.
Customer Testimonials
Leader in polymer thermal conductive material modification technology
Must we use Non-Silicone for optical modules?
Absolutely. Standard silicone causes outgassing, leading to lens fogging and signal loss.
-
Zero Outgassing & Migration
-
Ultimate reliability for LiDAR & Transceiver
Is a softer thermal pad (Shore 00 30) always better?
It depends on your design. Harder pads (Shore 60) can be ultra-thin for perfectly flat surfaces. Softer pads (Shore 30) are essential for filling irregular gaps and large tolerances.
-
Custom Hardness Available
-
Zero Localized Hot Spots
Thermal Gel or Pre-cut Pads for mass production?
Gel wins for complexity. Pads are great for simple, single components. But for complex boards with varying heights, automated gel dispensing eliminates the need for multiple pad SKUs.
-
Single-Pass Automated Dispensing
-
Cuts Material & Labor Costs by 20%+
How do you guarantee supply amid market volatility?
By eliminating supply chain risks. We protect our partners from long lead times and sudden price hikes.
-
Long-Term Raw Material Contracts
-
Guaranteed Capacity & Stable Pricing
How You Start Working With Us
3 Steps to Work with Us.
Send your inquiry
Tell us your application, gap size, and thermal requirements.Confirm Samples
You receive samples to test performance in your product.Mass Production & Delivery
We start production and arrange global shipping.
Ready to Resolve Your Challenge?
Contact our technical team for customized solutions tailored to your specific application.
