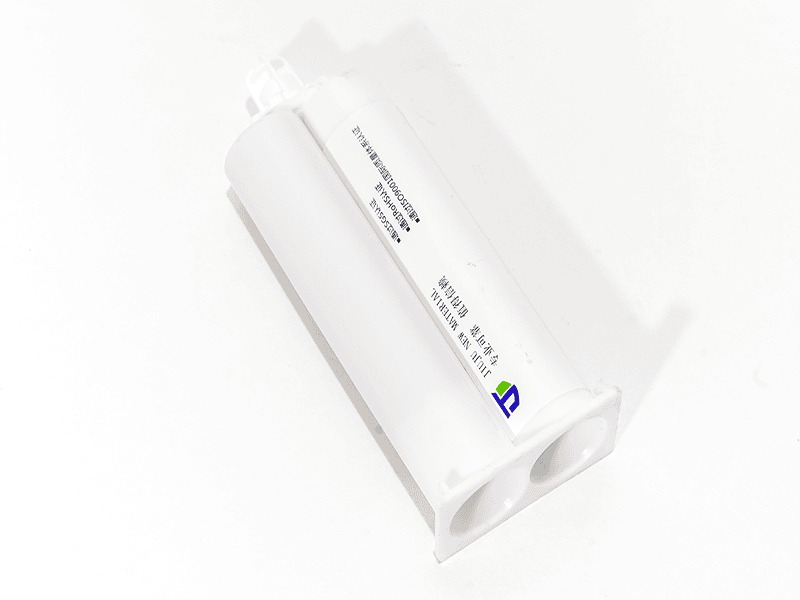

The series is a two-component, silicone-based thermal gel designed for long-term reliability. Its optimized polymer–filler bonding minimizes oil separation during storage.
Mixed at a 1:1 ratio, it offers low viscosity and excellent shear thinning, making dispensing fast and easy. Its good thixotropy also prevents collapse after application.
These are the specifications for our standard thermal pad products. For materials with thermal conductivity above 6 W/m·K, please contact our sales team directly — our technical manager will provide dedicated support and customized solutions.
| Attributes | JIUJU-8200AB | JIUJU-8200AB-LD | JIUJU-8300AB | JIUJU-8350AB | JIUJU-8400AB | JIUJU-8500AB | JIUJU-8600AB | JIUJU-8X10AB | Testing Standards |
|---|---|---|---|---|---|---|---|---|---|
| Structure | Curable silicon gel filled with ceramic powder | Curable silicon gel filled with ceramic powder | Curable silicon gel filled with ceramic powder | Curable silicon gel filled with ceramic powder | Curable silicon gel filled with ceramic powder | Curable silicon gel filled with ceramic powder | Curable silicon gel filled with ceramic powder | Curable silicon gel filled with ceramic powder | N/A |
| Components | Two-component composition | Two-component composition | Two-component composition | Two-component composition | Two-component composition | Two-component composition | Two-component composition | Two-component composition | N/A |
| Colour | A: Yellow B: White | A: Yellow B: White | A: Purple B: White | A: White B: Blue | A: White B: Blue | A: White B: Blue | A: Dark Red B: White | A: Dark gray B: Light color | Visual |
| Viscosity (cps) | 300,000 | 350,000 | 350,000 | 350,000 | 350,000 | 350,000 | — | — | ASTM D2196 |
| Mixing ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | N/A |
| Operation time | 2H(25℃) | 2H(25℃) | 2H(25℃) | 2H(25℃) | 2H(25℃) | 2H(25℃) | 1H(25℃) | 1H(25℃) | Jiuju Laboratory |
| Curing time | 18H(25℃) 0.5H(120℃) | 18H(25℃) 0.5H(120℃) | 18H(25℃) 0.5H(120℃) | 18H(25℃) 0.5H(120℃) | 18H(25℃) 0.5H(120℃) | 18H(25℃) 0.5H(120℃) | 24H(25℃) 0.5H(120℃) | 48H(25℃) 0.5H(120℃) | Jiuju Laboratory |
| Density ($text{g/cm}^3$) | 2.8 | 2 | 2.92 | 3.1 | 3.1 | 3.3 | 3.3 | 3.25 | ASTM D792 |
| Hardness (Shore OO) | 55 | 55 | 50 | 40 | 50 | 55 | 45 | 45 | ASTM D2240 |
| Usage temperature ($^{circ}text{C}$) | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 | Jiuju Laboratory |
| Minimum Interface Thickness (mm) | 0.06 | 0.2 | 0.1 | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | Jiuju Laboratory |
| Thermal Conductivity ($text{W/m.K}$) | 2 | 2 | 3 | 3.5 | 4 | 5 | 6 | 10 | ASTM D5470 |
| Breakdown Voltage ($text{KV/mm}$) | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 | ≥7 | ≥6 | ASTM D149 |
| Volume Resistivity ($text{ohm-cm}$) | ≥1.0×10¹³ | ≥1.0×10¹³ | ≥1.0×10¹³ | ≥1.0×10¹³ | ≥1.0×10¹³ | ≥1.0×10¹³ | ≥1.0×10¹³ | ≥1.0×10¹³ | ASTM D257 |
| Flame Retardant Grade | V0 | V0 | V0 | V0 | V0 | V0 | V0 | V0 | UL94 |
